SHAFTWALL FRAMING SYSTEM
SANDERS STEEL FRAMING provides a complete line of SHAFTWALL CH STUDS and J RUNNERS for your project.

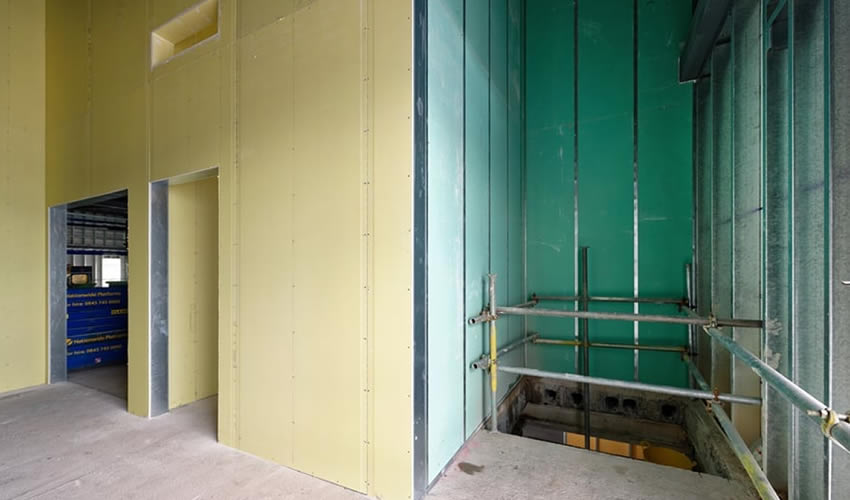

SHAFTWALL is designed to enclose elevator shafts, stairwells as well as other area separation wall applications.
Our SHAFTWALL products are designed and engineered to meet all application requirements.
| Width | Gauge | CH Stud | J Runner |
|---|---|---|---|
| 2-1/2″ | 25GA | 212CH25 | 212JR25 |
| 2-1/2″ | 20GA | 212CH20 | 212JR20 |
| 4″ | 25GA | 400CH25 | 400JR25 |
| 4″ | 20GA | 400CH20 | 400JR20 |
| 6″ | 20GA | 600CH20 | 600JR20 |
APPLICABLE STANDARDS
- CAN/CSA S-136-16 (North American specification for the design of cold-formed steel structural members)
- ASTM A653/A653M (Standard for steel sheet, zinc-coated (galvanized) or zinc-iron alloy-coated by the hot-dip process)
- ASTM C645 (Standard specification for non-structural steel framing members)
